Commercial Construction Company
  • Concrete Repair & Protection
  • Walls
  • Facilities Maintenance

Deteriorated Wall & Concrete Base Rebuilt

Client: Commercial Construction CompanyIndustry: Facilities Maintenance
Deteriorated Wall & Concrete Base Rebuilt

Challenge

Along several walls of a building for a commercial construction company, the bottom edge of the metal siding panels had corroded and rotted away where they met the concrete block base wall. The block base below was weathered, stained, and spalled, and gaps behind the panels left the wall insulation exposed, letting water into the wall around the windows and along the long elevations.

Belzona Solution

Rumford Industrial Group removed damaged siding where needed, cleared the debris and corrosion from the base of the panels, and prepared the concrete block base for repair. The base wall was then rebuilt to profile and resurfaced with Belzona 4111 (Magma-Quartz), trowel-applied by hand, and the bottom edges of the siding panels were rebuilt and coated so the cladding now sits on a sealed, weather-tight base. The work was cold applied in situ, with no hot work and no wall replacement.

  • Belzona 4111 (Magma-Quartz)

Result

The concrete base was rebuilt to profile, the siding edges were rebuilt and sealed, and water ingress was stopped along the repaired walls and around the windows, without replacing the wall or the cladding.

Project Photos

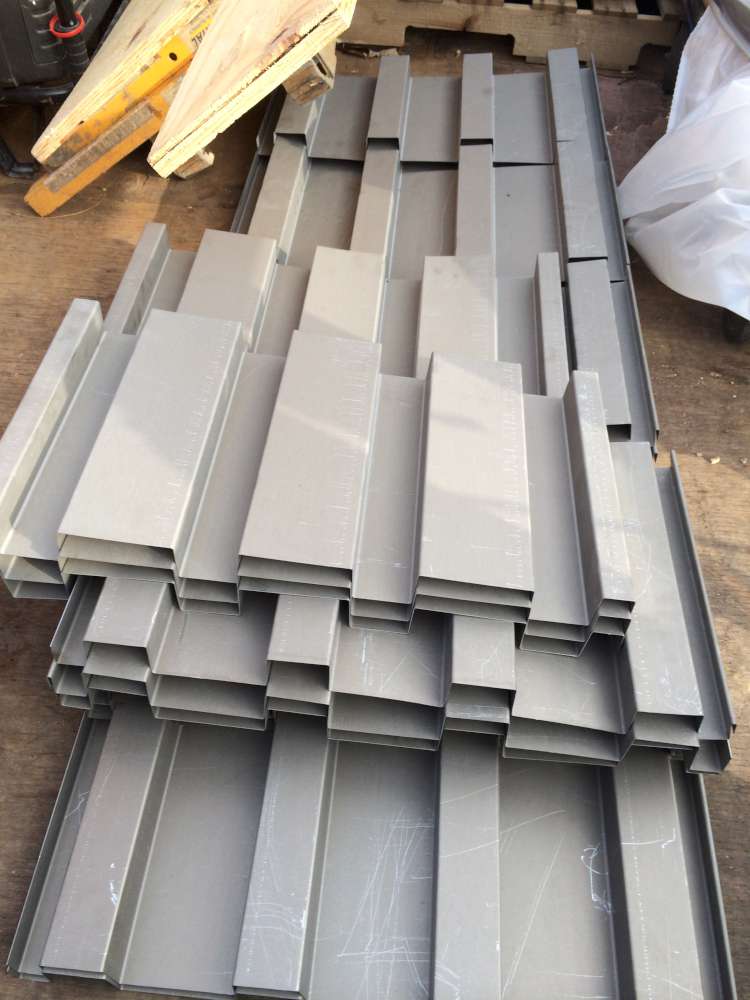

Damaged siding panels removed from the wall and stacked on site.
Damaged siding panels removed from the wall and stacked on site.

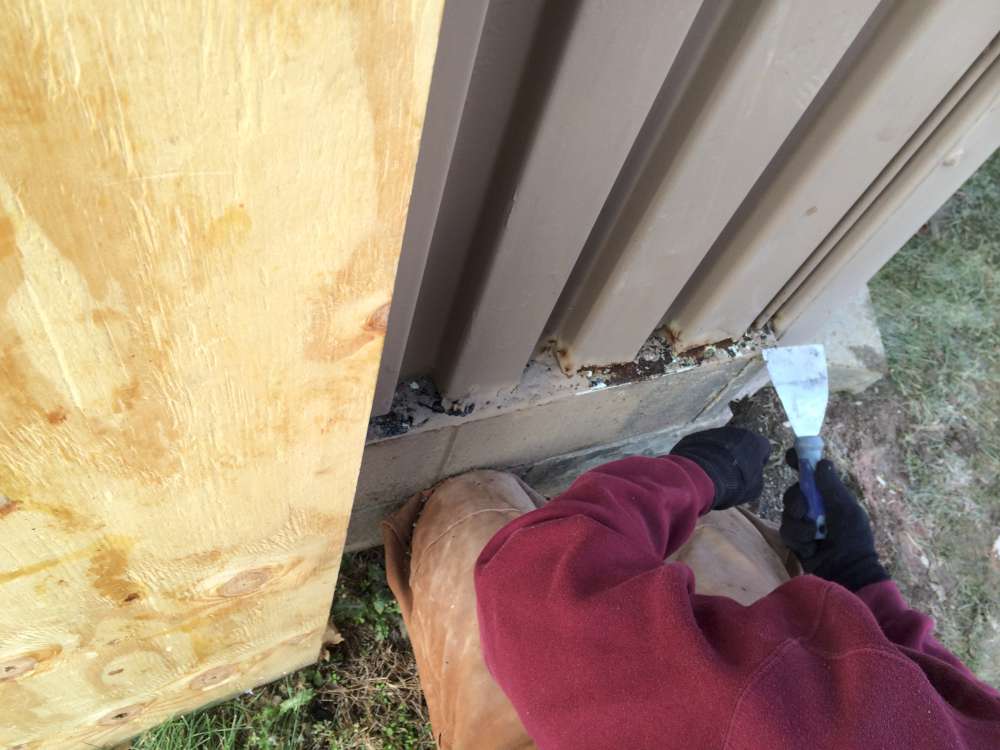

Surface prep: clearing debris and corrosion from the base of the siding.
Surface prep: clearing debris and corrosion from the base of the siding.

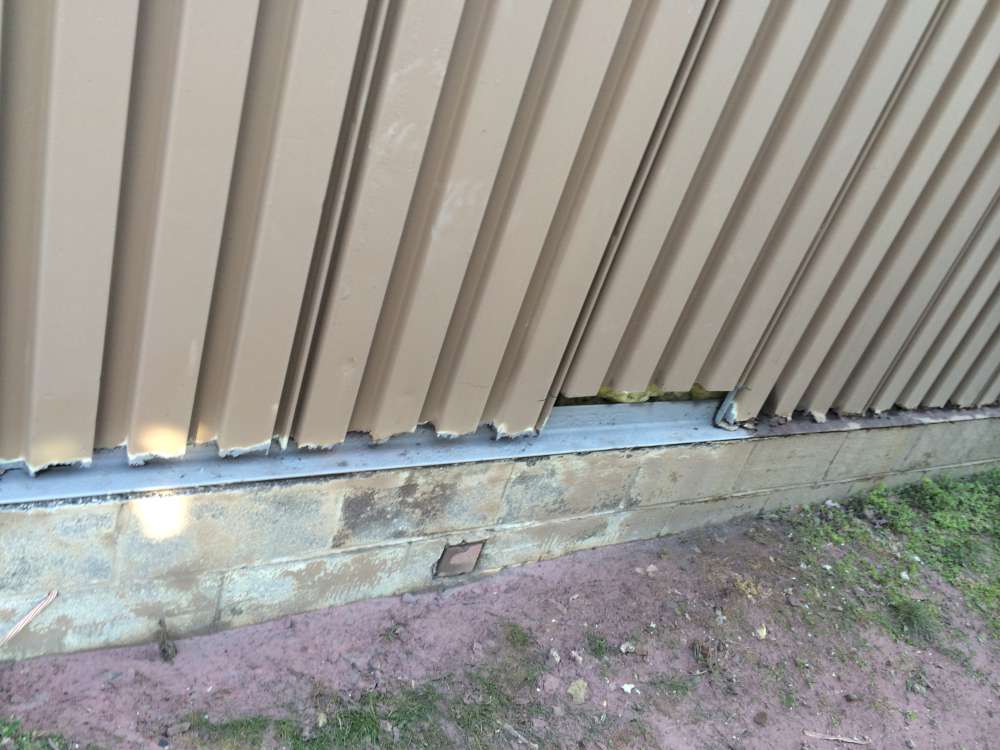

Before: siding panels corroded away at the bottom edge above a weathered concrete block base.
Before: siding panels corroded away at the bottom edge above a weathered concrete block base.

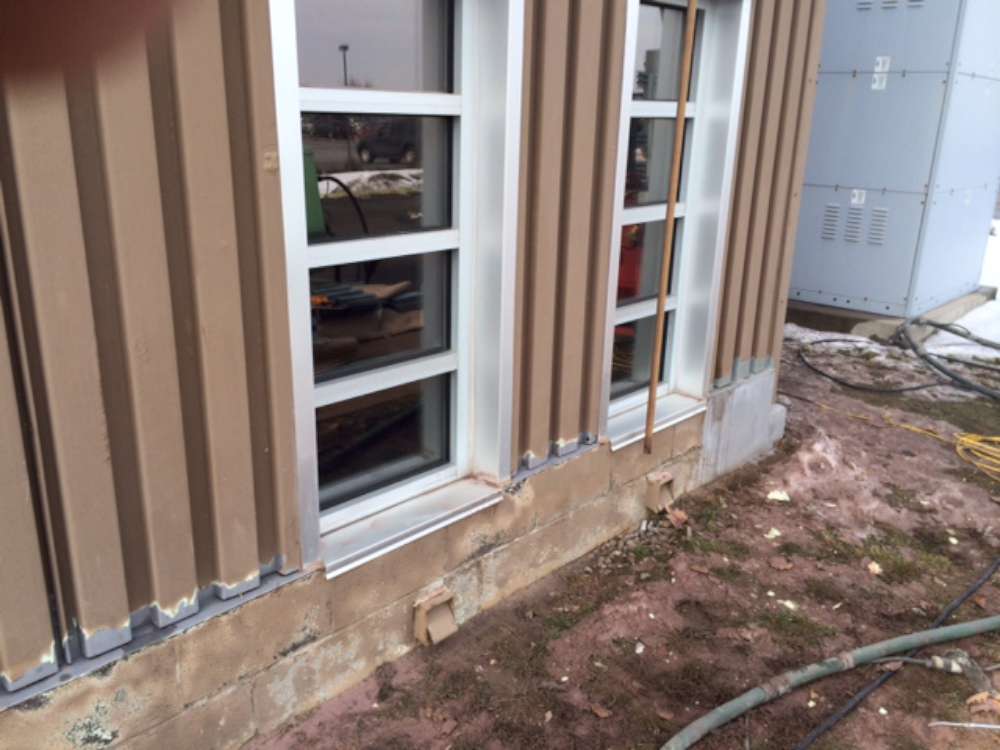

Before: damaged siding and a stained, spalled block base below the windows.
Before: damaged siding and a stained, spalled block base below the windows.

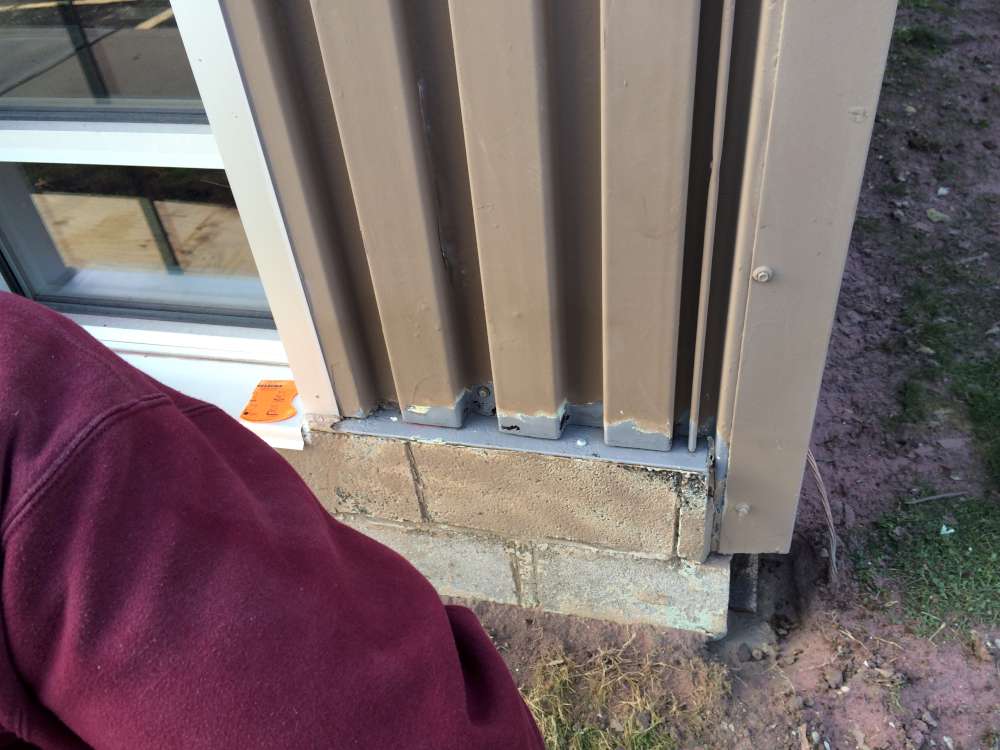

Before: deteriorated panel edges and block base at a corner next to a window.
Before: deteriorated panel edges and block base at a corner next to a window.

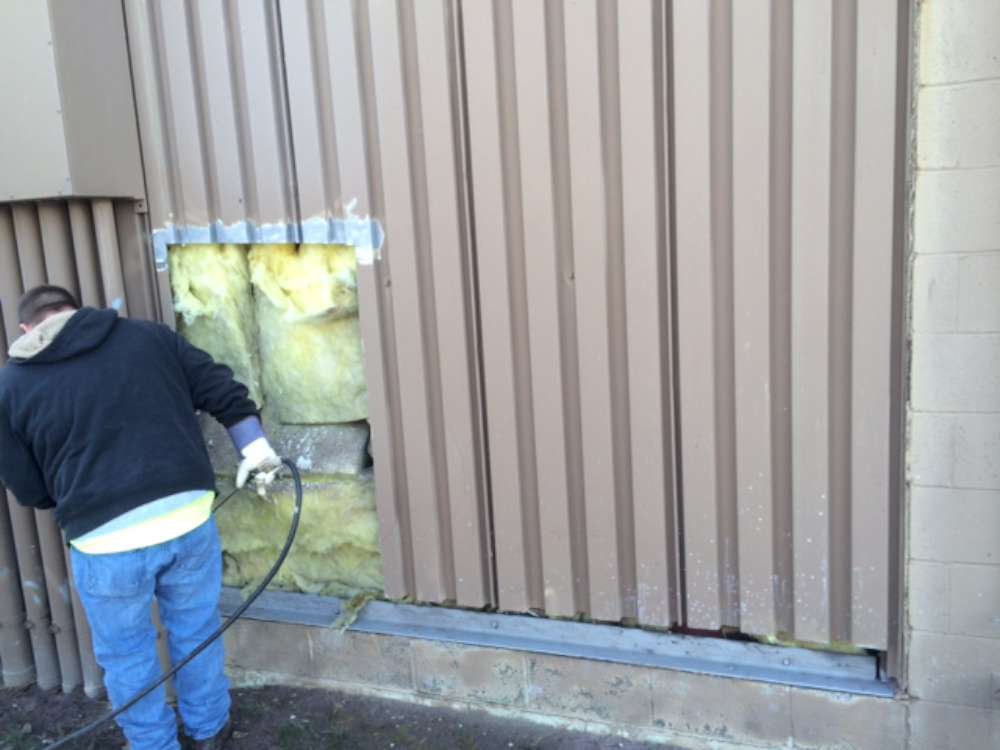

Siding removed, exposing the wall insulation behind the damaged panels.
Siding removed, exposing the wall insulation behind the damaged panels.

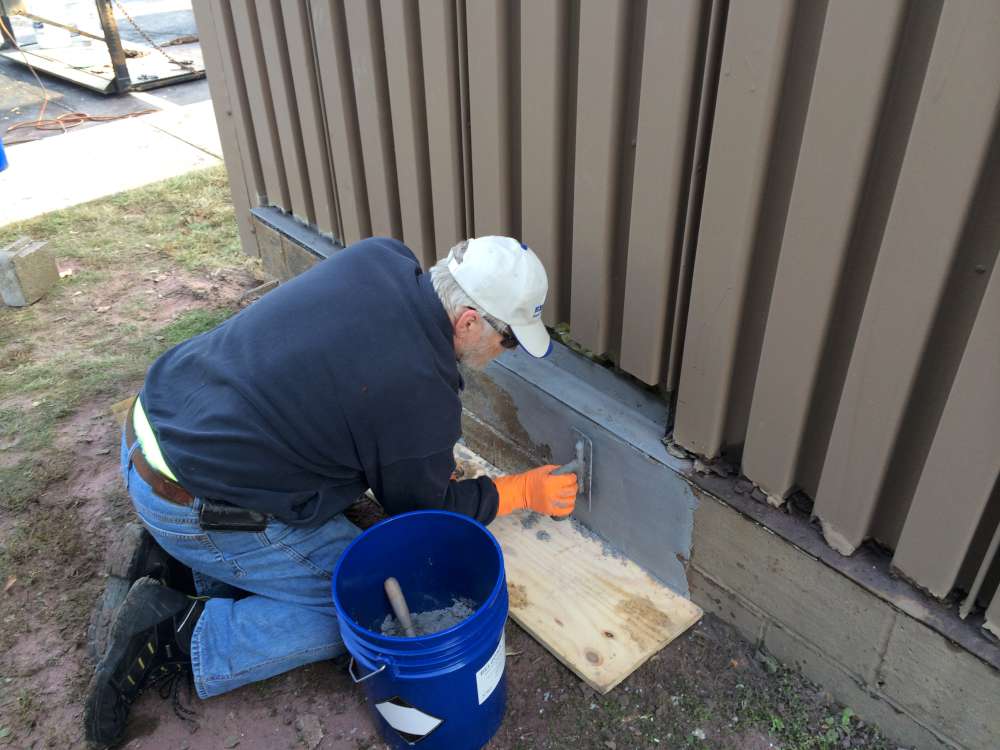

In progress: Belzona 4111 (Magma-Quartz) being trowel-applied to rebuild the concrete base wall.
In progress: Belzona 4111 (Magma-Quartz) being trowel-applied to rebuild the concrete base wall.

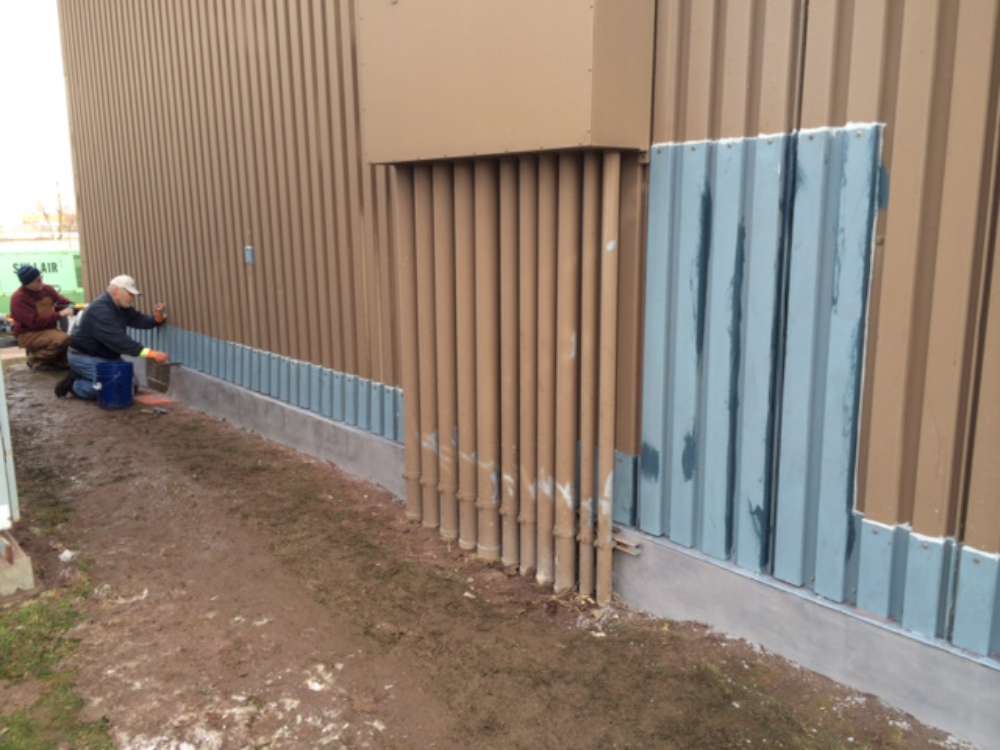

In progress: siding edges rebuilt and coated along a long wall, with the base resurfaced.
In progress: siding edges rebuilt and coated along a long wall, with the base resurfaced.

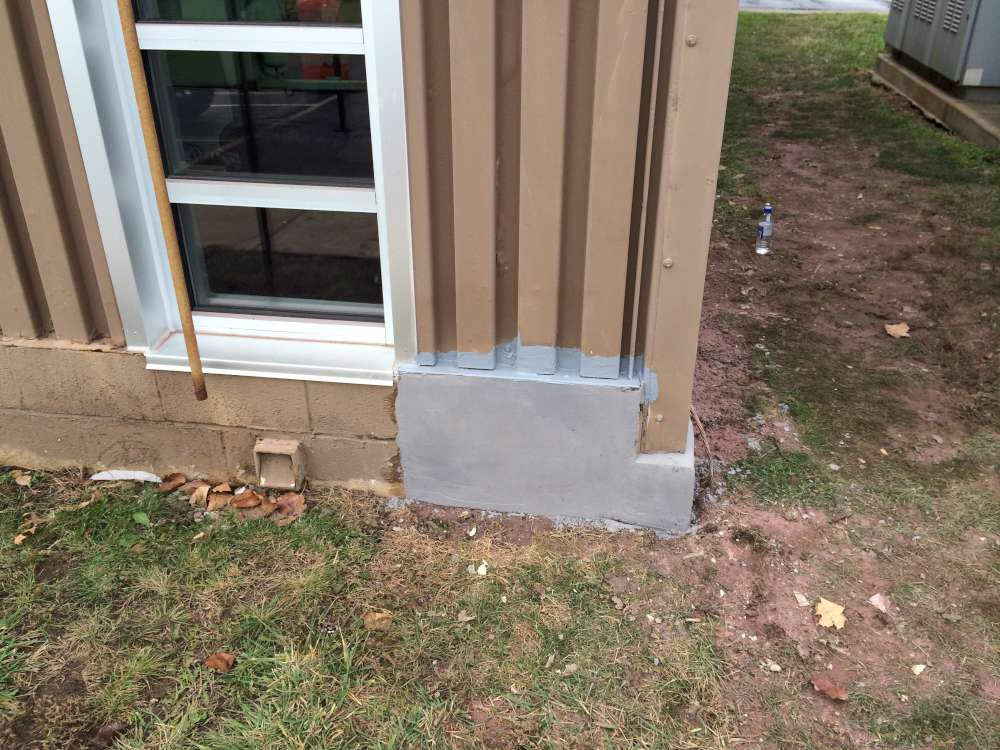

After: the corner base wall rebuilt and the siding edges sealed.
After: the corner base wall rebuilt and the siding edges sealed.
After: repaired siding sitting on a rebuilt, coated concrete base.
After: repaired siding sitting on a rebuilt, coated concrete base.

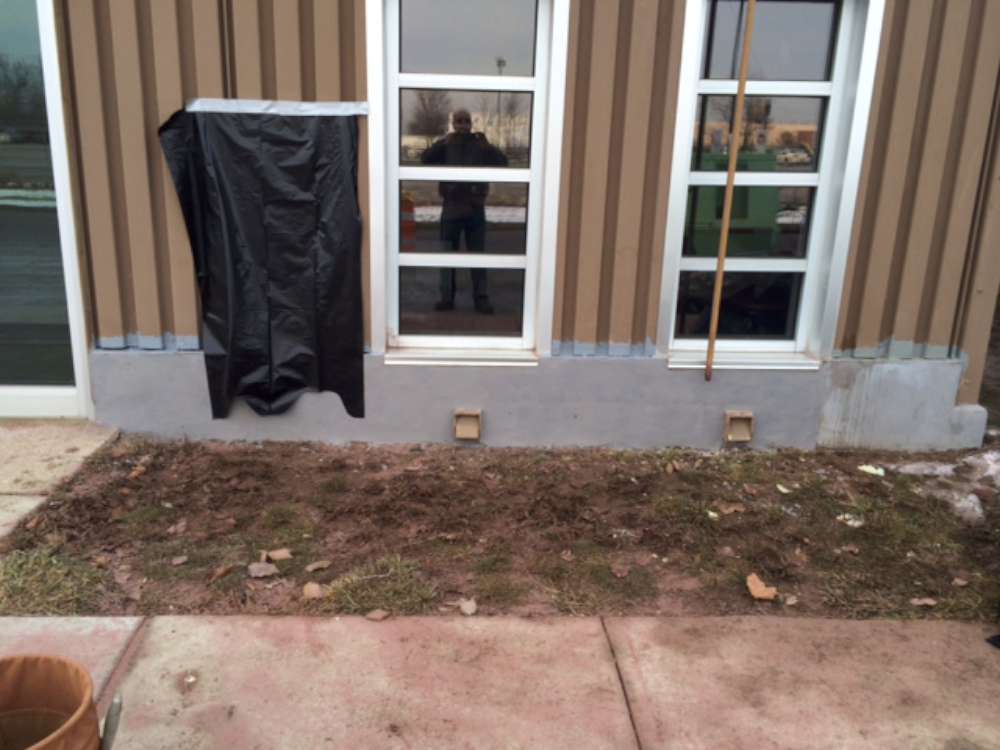

After: the window wall with its base rebuilt and resurfaced.
After: the window wall with its base rebuilt and resurfaced.
