Inland Marine Towboat Hull Coating

Client: Inland Marine OperatorIndustry: Marine / Oil & GasYear: 2026
Inland Marine Towboat Hull Coating

Challenge

Towboat hull required a durable long-lasting protective coating. Full prep performed at a regional shipyard.

Belzona Solution

High-pressure wash at 4,000–5,000 psi, abrasive blast with 12/40 Black Beauty to a 3.5–4.5 mil profile, then Belzona 5811 applied as a beige base with a black topcoat.

  • Belzona 5811 (Immersion Grade)

Result

25.9 mil DFT average across 201 readings. Temperature, humidity and dew point logged throughout the application (April 2026).

Project Photos

Hull blasted to a 3.5–4.5 mil profile — bow thruster and shaft area prepped.
Hull blasted to a 3.5–4.5 mil profile — bow thruster and shaft area prepped.

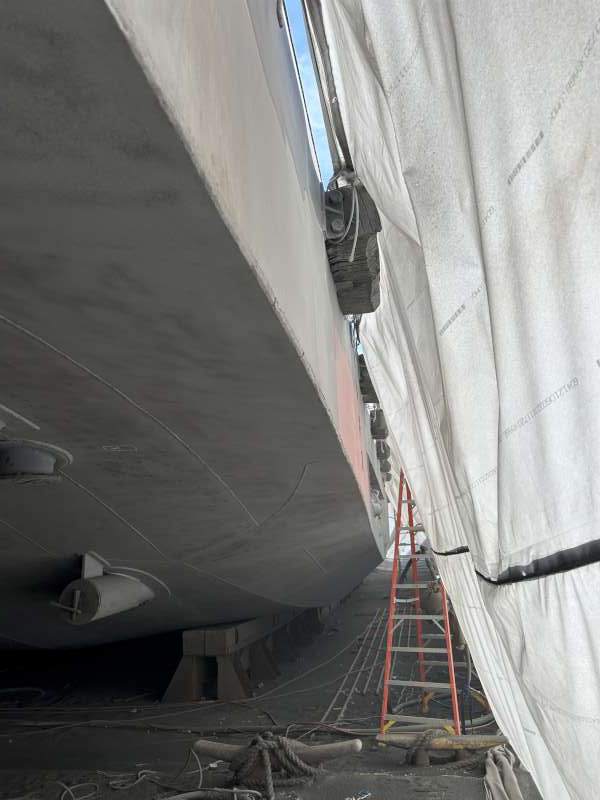

Prepared bare steel along the port side, contained under shrink wrap.
Prepared bare steel along the port side, contained under shrink wrap.

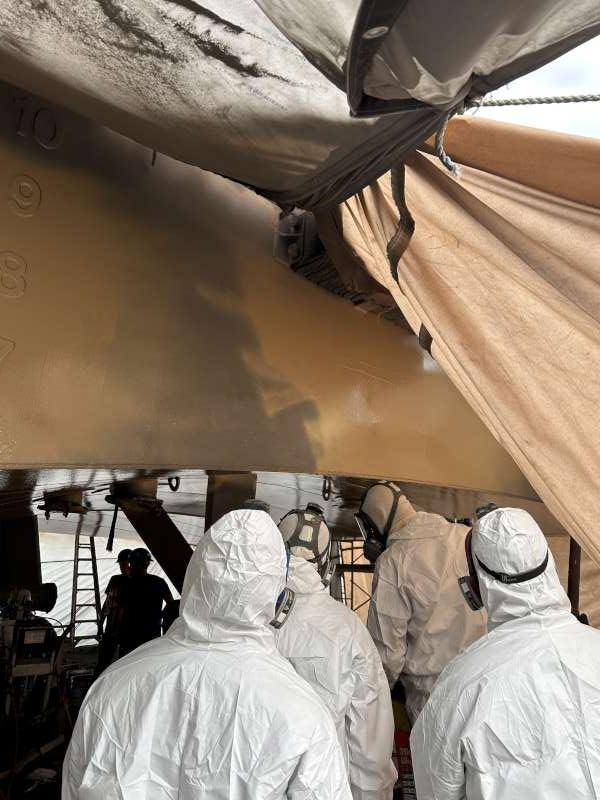

Crew spraying the Belzona 5811 beige base coat in full PPE.
Crew spraying the Belzona 5811 beige base coat in full PPE.

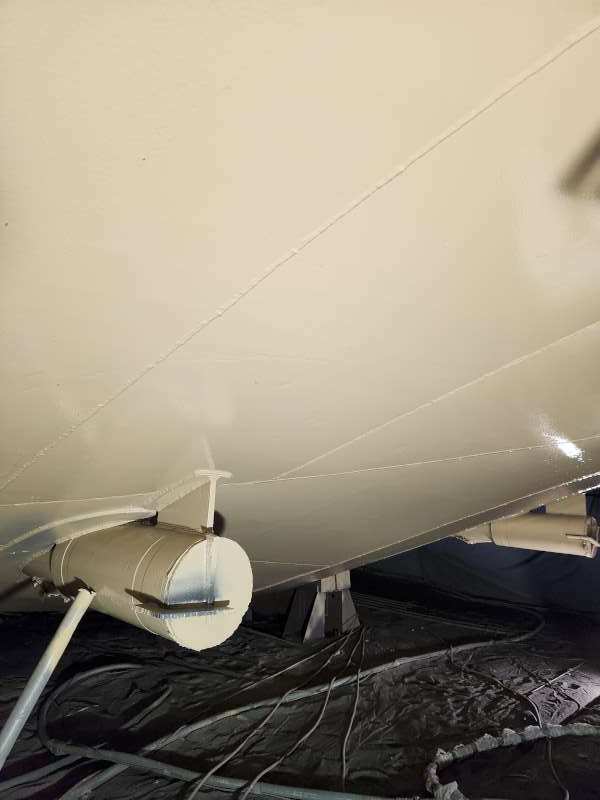

Beige base coat complete across the bottom plating and shaft tube.
Beige base coat complete across the bottom plating and shaft tube.

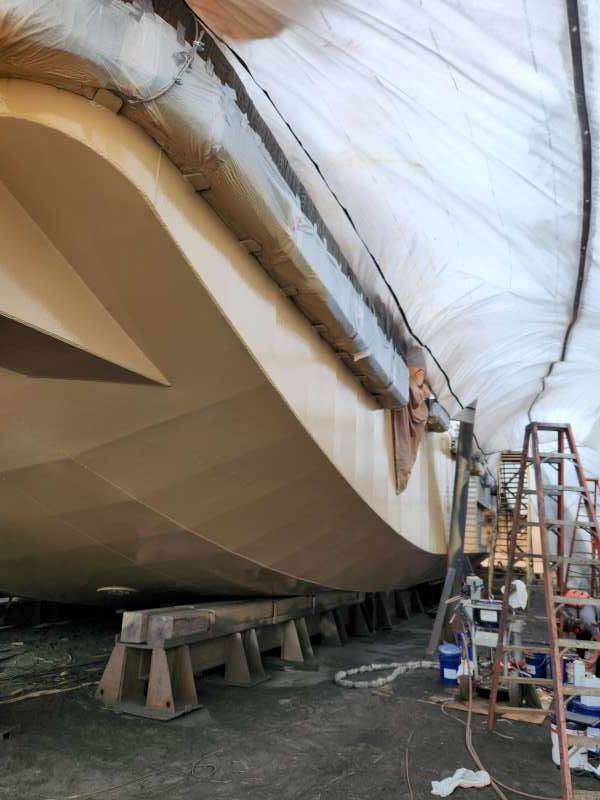

Base coat continuous around the chine and bow section.
Base coat continuous around the chine and bow section.

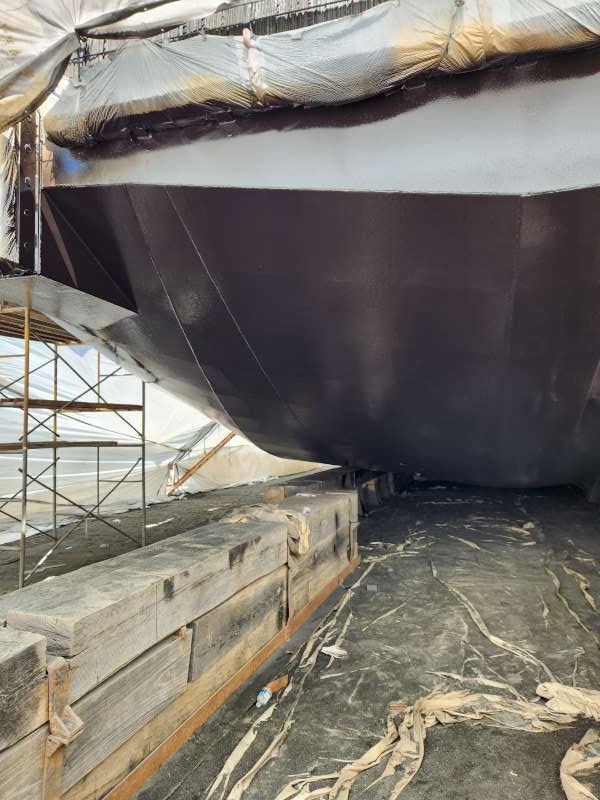

Black topcoat applied over the base coat at the bow.
Black topcoat applied over the base coat at the bow.

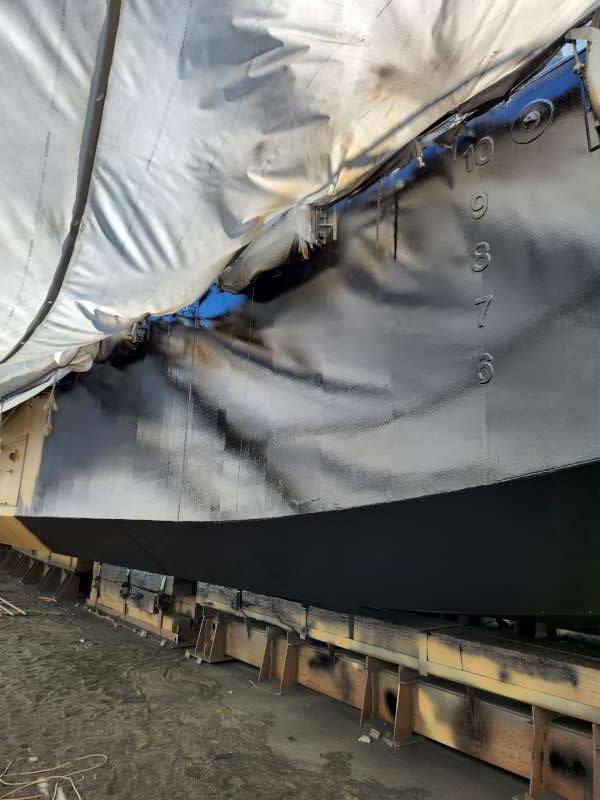

Topcoat along the hull side with draft marks masked and preserved.
Topcoat along the hull side with draft marks masked and preserved.
Completed hull coating — 25.9 mil DFT average across 201 readings.
Completed hull coating — 25.9 mil DFT average across 201 readings.
